Apache HTTP Server Version 2.2
This document supplements the
mod_file_cache and htcacheclean reference documentation.
It describes how to use Apache's caching features to accelerate web and
proxy serving, while avoiding common problems and misconfigurations.
As of Apache HTTP server version 2.2
mod_file_cache are no longer marked
experimental and are considered suitable for production use. These
caching architectures provide a powerful means to accelerate HTTP
handling, both as an origin webserver and as a proxy.
mod_cache and its provider modules
provide intelligent, HTTP-aware caching. The content itself is stored
in the cache, and mod_cache aims to honour all of the various HTTP
headers and options that control the cachability of content. It can
handle both local and proxied content.
is aimed at both simple and complex caching configurations, where
you are dealing with proxied content, dynamic local content or
have a need to speed up access to local files which change with
mod_file_cache on the other hand presents a more
basic, but sometimes useful, form of caching. Rather than maintain
the complexity of actively ensuring the cachability of URLs,
mod_file_cache offers file-handle and memory-mapping
tricks to keep a cache of files as they were when Apache was last
started. As such,
mod_file_cache is aimed at improving
the access time to local static files which do not change very
mod_file_cache presents a relatively simple
caching implementation, apart from the specific sections on
MMapStatic, the explanations
in this guide cover the
|Related Modules||Related Directives|
There are two main stages in
mod_cache that can
occur in the lifetime of a request. First,
is a URL mapping module, which means that if a URL has been cached,
and the cached version of that URL has not expired, the request will
be served directly by
This means that any other stages that might ordinarily happen
in the process of serving a request -- for example being handled
won't happen. But then this is the point of caching content in
the first place.
If the URL is not found within the cache,
will add a filter to the request handling. After
Apache has located the content by the usual means, the filter will be run
as the content is served. If the content is determined to be cacheable,
the content will be saved to the cache for future serving.
If the URL is found within the cache, but also found to have expired,
the filter is added anyway, but
mod_cache will create
a conditional request to the backend, to determine if the cached version
is still current. If the cached version is still current, its
meta-information will be updated and the request will be served from the
cache. If the cached version is no longer current, the cached version
will be deleted and the filter will save the updated content to the cache
as it is served.
When caching locally generated content, ensuring that
UseCanonicalName is set to
On can dramatically improve the ratio of cache hits. This
is because the hostname of the virtual-host serving the content forms
a part of the cache key. With the setting set to
virtual-hosts with multiple server names or aliases will not produce
differently cached entities, and instead content will be cached as
per the canonical hostname.
Because caching is performed within the URL to filename translation phase, cached documents will only be served in response to URL requests. Ordinarily this is of little consequence, but there is one circumstance in which it matters: If you are using Server Side Includes;
<!-- The following include can be cached --> <!--#include virtual="/footer.html" --> <!-- The following include can not be cached --> <!--#include file="/path/to/footer.html" -->
If you are using Server Side Includes, and want the benefit of speedy
serves from the cache, you should use
The default expiry period for cached entities is one hour, however
this can be easily over-ridden by using the
CacheDefaultExpire directive. This
default is only used when the original source of the content does not
specify an expire time or time of last modification.
For local content,
mod_expires may be used to
fine-tune the expiry period.
The maximum expiry period may also be controlled by using the
When content expires from the cache and is re-requested from the backend or content provider, rather than pass on the original request, Apache will use a conditional request instead.
HTTP offers a number of headers which allow a client, or cache to discern between different versions of the same content. For example if a resource was served with an "Etag:" header, it is possible to make a conditional request with an "If-None-Match:" header. If a resource was served with a "Last-Modified:" header it is possible to make a conditional request with an "If-Modified-Since:" header, and so on.
When such a conditional request is made, the response differs depending on whether the content matches the conditions. If a request is made with an "If-Modified-Since:" header, and the content has not been modified since the time indicated in the request then a terse "304 Not Modified" response is issued.
If the content has changed, then it is served as if the request were not conditional to begin with.
The benefits of conditional requests in relation to caching are twofold. Firstly, when making such a request to the backend, if the content from the backend matches the content in the store, this can be determined easily and without the overhead of transferring the entire resource.
Secondly, conditional requests are usually less strenuous on the
backend. For static files, typically all that is involved is a call
stat() or similar system call, to see if the file has
changed in size or modification time. As such, even if Apache is
caching local content, even expired content may still be served faster
from the cache if it has not changed. As long as reading from the cache
store is faster than reading from the backend (e.g. an in-memory cache
compared to reading from disk).
As mentioned already, the two styles of caching in Apache work
mod_file_cache caching maintains file
contents as they were when Apache was started. When a request is
made for a file that is cached by this module, it is intercepted
and the cached file is served.
mod_cache caching on the other hand is more
complex. When serving a request, if it has not been cached
previously, the caching module will determine if the content
is cacheable. The conditions for determining cachability of
a response are;
CacheIgnoreNoLastModdirective has been used to require otherwise.
CacheStorePrivatehas been used to require otherwise.
CacheStoreNoStorehas been used.
In short, any content which is highly time-sensitive, or which varies depending on the particulars of the request that are not covered by HTTP negotiation, should not be cached.
If you have dynamic content which changes depending on the IP address of the requester, or changes every 5 minutes, it should almost certainly not be cached.
If on the other hand, the content served differs depending on the values of various HTTP headers, it is possible that it might be possible to cache it intelligently through the use of a "Vary" header.
If a response with a "Vary" header is received by
mod_cache when requesting content by the backend it
will attempt to handle it intelligently. If possible,
mod_cache will detect the headers attributed in the
"Vary" response in future requests and serve the correct cached
If for example, a response is received with a vary header such as;
mod_cache will only serve the cached content to
requesters with matching accept-language and accept-charset headers
matching those of the original request.
mod_cache is very much like having a built
in reverse-proxy. Requests will be served by the caching module unless
it determines that the backend should be queried. When caching local
resources, this drastically changes the security model of Apache.
As traversing a filesystem hierarchy to examine potential
.htaccess files would be a very expensive operation,
partially defeating the point of caching (to speed up requests),
mod_cache makes no decision about whether a cached
entity is authorised for serving. In other words; if
mod_cache has cached some content, it will be served
from the cache as long as that content has not expired.
If, for example, your configuration permits access to a resource by IP
address you should ensure that this content is not cached. You can do this by
mod_expires. Left unchecked,
mod_cache - very much like a reverse proxy - would cache
the content when served and then serve it to any client, on any IP
As requests to end-users can be served from the cache, the cache itself can become a target for those wishing to deface or interfere with content. It is important to bear in mind that the cache must at all times be writable by the user which Apache is running as. This is in stark contrast to the usually recommended situation of maintaining all content unwritable by the Apache user.
If the Apache user is compromised, for example through a flaw in
a CGI process, it is possible that the cache may be targeted. When
mod_disk_cache, it is relatively easy to
insert or modify a cached entity.
This presents a somewhat elevated risk in comparison to the other
types of attack it is possible to make as the Apache user. If you are
mod_disk_cache you should bear this in mind -
ensure you upgrade Apache when security upgrades are announced and
run CGI processes as a non-Apache user using suEXEC if possible.
When running Apache as a caching proxy server, there is also the potential for so-called cache poisoning. Cache Poisoning is a broad term for attacks in which an attacker causes the proxy server to retrieve incorrect (and usually undesirable) content from the backend.
For example if the DNS servers used by your system running Apache are vulnerable to DNS cache poisoning, an attacker may be able to control where Apache connects to when requesting content from the origin server. Another example is so-called HTTP request-smuggling attacks.
This document is not the correct place for an in-depth discussion of HTTP request smuggling (instead, try your favourite search engine) however it is important to be aware that it is possible to make a series of requests, and to exploit a vulnerability on an origin webserver such that the attacker can entirely control the content retrieved by the proxy.
|Related Modules||Related Directives|
The act of opening a file can itself be a source of delay, particularly on network filesystems. By maintaining a cache of open file descriptors for commonly served files, Apache can avoid this delay. Currently Apache provides two different implementations of File-Handle Caching.
The most basic form of caching present in Apache is the file-handle
caching provided by
mod_file_cache. Rather than caching
file-contents, this cache maintains a table of open file descriptors. Files
to be cached in this manner are specified in the configuration file using
instructs Apache to open the file when Apache is started and to re-use
this file-handle for all subsequent access to this file.
If you intend to cache a large number of files in this manner, you must ensure that your operating system's limit for the number of open files is set appropriately.
does not cause the file-contents to be cached per-se, it does mean
that if the file changes while Apache is running these changes will
not be picked up. The file will be consistently served as it was
when Apache was started.
If the file is removed while Apache is running, Apache will continue to maintain an open file descriptor and serve the file as it was when Apache was started. This usually also means that although the file will have been deleted, and not show up on the filesystem, extra free space will not be recovered until Apache is stopped and the file descriptor closed.
CacheEnable fd /
As with all of
mod_cache this type of file-handle
caching is intelligent, and handles will not be maintained beyond
the expiry time of the cached content.
|Related Modules||Related Directives|
Serving directly from system memory is universally the fastest method of serving content. Reading files from a disk controller or, even worse, from a remote network is orders of magnitude slower. Disk controllers usually involve physical processes, and network access is limited by your available bandwidth. Memory access on the other hand can take mere nano-seconds.
System memory isn't cheap though, byte for byte it's by far the most expensive type of storage and it's important to ensure that it is used efficiently. By caching files in memory you decrease the amount of memory available on the system. As we'll see, in the case of operating system caching, this is not so much of an issue, but when using Apache's own in-memory caching it is important to make sure that you do not allocate too much memory to a cache. Otherwise the system will be forced to swap out memory, which will likely degrade performance.
Almost all modern operating systems cache file-data in memory managed directly by the kernel. This is a powerful feature, and for the most part operating systems get it right. For example, on Linux, let's look at the difference in the time it takes to read a file for the first time and the second time;
colm@coroebus:~$ time cat testfile > /dev/null real 0m0.065s user 0m0.000s sys 0m0.001s colm@coroebus:~$ time cat testfile > /dev/null real 0m0.003s user 0m0.003s sys 0m0.000s
Even for this small file, there is a huge difference in the amount of time it takes to read the file. This is because the kernel has cached the file contents in memory.
By ensuring there is "spare" memory on your system, you can ensure that more and more file-contents will be stored in this cache. This can be a very efficient means of in-memory caching, and involves no extra configuration of Apache at all.
Additionally, because the operating system knows when files are deleted or modified, it can automatically remove file contents from the cache when neccessary. This is a big advantage over Apache's in-memory caching which has no way of knowing when a file has changed.
Despite the performance and advantages of automatic operating system caching there are some circumstances in which in-memory caching may be better performed by Apache.
Firstly, an operating system can only cache files it knows about. If you are running Apache as a proxy server, the files you are caching are not locally stored but remotely served. If you still want the unbeatable speed of in-memory caching, Apache's own memory caching is needed.
mod_file_cache provides the
MMapStatic directive, which
allows you to have Apache map a static file's contents into memory at
start time (using the mmap system call). Apache will use the in-memory
contents for all subsequent accesses to this file.
As with the
CacheFile directive, any
changes in these files will not be picked up by Apache after it has
directive does not keep track of how much memory it allocates, so
you must ensure not to over-use the directive. Each Apache child
process will replicate this memory, so it is critically important
to ensure that the files mapped are not so large as to cause the
system to swap memory.
mod_mem_cache provides a HTTP-aware intelligent
in-memory cache. It also uses heap memory directly, which means that
even if MMap is not supported on your system,
mod_mem_cache may still be able to perform caching.
Caching of this type is enabled via;
# Enable memory caching CacheEnable mem / # Limit the size of the cache to 1 Megabyte MCacheSize 1024
|Related Modules||Related Directives|
Typically the module will be configured as so;
CacheRoot /var/cache/apache/ CacheEnable disk / CacheDirLevels 2 CacheDirLength 1
Importantly, as the cached files are locally stored, operating system in-memory caching will typically be applied to their access also. So although the files are stored on disk, if they are frequently accessed it is likely the operating system will ensure that they are actually served from memory.
To store items in the cache,
a 22 character hash of the URL being requested. This hash incorporates
the hostname, protocol, port, path and any CGI arguments to the URL,
to ensure that multiple URLs do not collide.
Each character may be any one of 64-different characters, which mean
that overall there are 64^22 possible hashes. For example, a URL might
be hashed to
xyTGxSMO2b68mBCykqkp1w. This hash is used
as a prefix for the naming of the files specific to that URL within
the cache, however first it is split up into directories as per
specifies how many levels of subdirectory there should be, and
specifies how many characters should be in each directory. With
the example settings given above, the hash would be turned into
a filename prefix as
The overall aim of this technique is to reduce the number of
subdirectories or files that may be in a particular directory,
as most file-systems slow down as this number increases. With
setting of "1" for
there can at most be 64 subdirectories at any particular level.
With a setting of 2 there can be 64 * 64 subdirectories, and so on.
Unless you have a good reason not to, using a setting of "1"
depends on how many files you anticipate to store in the cache.
With the setting of "2" used in the above example, a grand
total of 4096 subdirectories can ultimately be created. With
1 million files cached, this works out at roughly 245 cached
URLs per directory.
Each URL uses at least two files in the cache-store. Typically there is a ".header" file, which includes meta-information about the URL, such as when it is due to expire and a ".data" file which is a verbatim copy of the content to be served.
In the case of a content negotiated via the "Vary" header, a ".vary" directory will be created for the URL in question. This directory will have multiple ".data" files corresponding to the differently negotiated content.
mod_disk_cache will remove cached content
as it is expired, it does not maintain any information on the total
size of the cache or how little free space may be left.
Instead, provided with Apache is the htcacheclean tool which, as the name suggests, allows you to clean the cache periodically. Determining how frequently to run htcacheclean and what target size to use for the cache is somewhat complex and trial and error may be needed to select optimal values.
htcacheclean has two modes of operation. It can be run as persistent daemon, or periodically from cron. htcacheclean can take up to an hour or more to process very large (tens of gigabytes) caches and if you are running it from cron it is recommended that you determine how long a typical run takes, to avoid running more than one instance at a time.

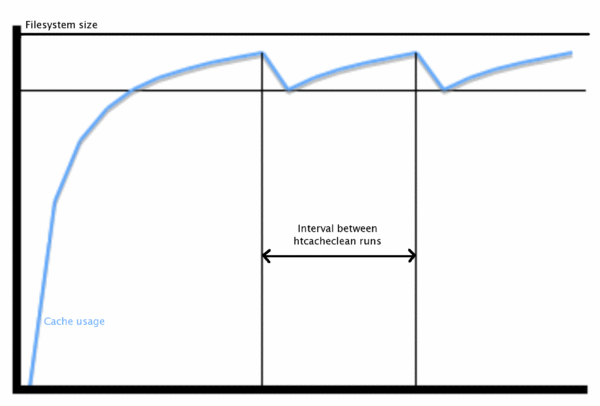

Figure 1: Typical cache growth / clean sequence.
