### 5.5. Matrix Functions

Matrix functions can be used within either vertex shaders or fragment shaders (see Table 5.5).

##### Table 5.5. Matrix functions

Syntax

Description

mat2 matrixCompMult (mat2 x, mat2 y)
mat3 matrixCompMult (mat3 x, mat3 y)
mat4 matrixCompMult (mat4 x, mat4 y)

Multiply matrix x by matrix y component-wise, i.e., result[i][j] is the scalar product of x[i][j] and y[i][j].
Note: To get linear-algebraic matrix multiplication, use the multiply operator (*).

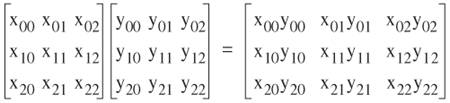

These functions produce the component-wise multiplication of two matrices. For instance, the result of calling matrixCompMult with two 3D matrices x and y looks like this:

```mat3 x, y, newmat;
. . .
newmat = matrixCompMult(x, y);```

This is not usually what you want if you are using matrices to represent transformation steps. In this case, you would use the multiply operator (*) to perform the linear-algebraic matrix multiplication

```mat3 x, y, newmat;
. . .
newmat = x * y;```

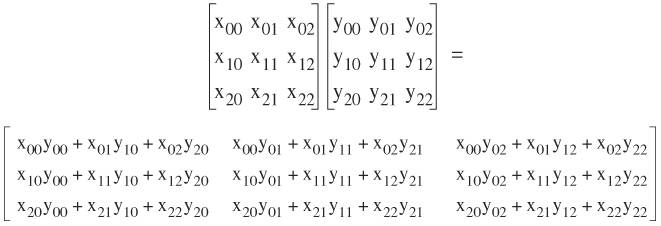

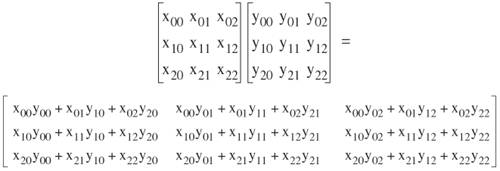

which performs the following operation:

﻿
