A closer look at HTTP status codes

Ajax tutorial | PREV | NEXT

With ready states and the server's response in your bag of Ajax programming techniques, you're ready to add another level of sophistication to your Ajax applications -- working with HTTP status codes. These codes are nothing new to Ajax. They've been around on the Web for as long as there has been a Web. You've probably already seen several of these through your Web browser:

To add another layer of control and responsiveness (and particularly more robust error-handling) to your Ajax applications, then you need to check the status codes in a request and respond appropriately.

200: Everything is OK

In many Ajax applications, you'll see a callback function that checks for a ready state and then goes on to work with the data from the server response, as in Listing 6.


Listing 6. Callback function that ignores the status code
   function updatePage() {
     if (request.readyState == 4) {
       var response = request.responseText.split("|");
       document.getElementById("order").value = response[0];
       document.getElementById("address").innerHTML =
         response[1].replace(/\n/g, "<br />");
     }
   }

This turns out to be a short-sighted and error-prone approach to Ajax programming. If a script requires authentication and your request does not provide valid credentials, the server will return an error code like 403 or 401. However, the ready state will be set to 4 since the server answered the request (even if the answer wasn't what you wanted or expected for your request). As a result, the user is not going to get valid data and might even get a nasty error when your JavaScript tries to use non-existent server data.

It takes minimal effort to ensure that the server not only finished with a request, but returned an "Everything is OK" status code. That code is "200" and is reported through the status property of the XMLHttpRequest object. To make sure that not only did the server finish with a request but that it also reported an OK status, add an additional check in your callback function as shown in Listing 7.


Listing 7. Check for a valid status code
   function updatePage() {
     if (request.readyState == 4) {
       if (request.status == 200) {
         var response = request.responseText.split("|");
         document.getElementById("order").value = response[0];
         document.getElementById("address").innerHTML =
           response[1].replace(/\n/g, "<br />");
       } else
         alert("status is " + request.status);
     }
   }

With the addition of a few lines of code, you can be certain that if something does go wrong, your users will get a (questionably) helpful error message rather than seeing a page of garbled data with no explanation.

Redirection and rerouting

Before I talk in depth about errors, it's worth talking about something you probably don't have to worry about when you're using Ajax -- redirections. In HTTP status codes, this is the 300 family of status codes, including:

Ajax programmers probably aren't concerned about redirections for two reasons:

As a result, your requests aren't able to be redirected to another server without generating a security error. In those cases, you won't get a status code at all. You'll usually just have a JavaScript error in the debug console. So, while you think about plenty of status codes, you can largely ignore the redirection codes altogether.

Errors

Once you've taken care of status code 200 and realized you can largely ignore the 300 family of status codes, the only other group of codes to worry about is the 400 family, which indicates various types of errors. Look back at Listing 7 and notice that while errors are handled, it's only a very generic error message that is output to the user. While this is a step in the right direction, it's still a pretty useless message in terms of telling the user or a programmer working on the application what actually went wrong.
Edge cases and hard cases
At this point, novice programmers might wonder what all this fuss is about. It's certainly true that less than 5 percent of Ajax requests require working with ready states like 2 and 3 and status codes like 403 (and in fact, it might be much closer to 1 percent or less). These cases are important and are called edge cases -- situations that occur in very unusual situations in which the oddest conditions are met. While unusual, edge cases make up about 80 percent of most users' frustrations!

Typical users forget the 100 times an application worked correctly, but clearly remember the time it didn't. If you can handle the edge cases -- and hard cases -- smoothly, then you'll have content users that return to your site.

First, add support for missing pages. This really shouldn't happen much in production systems, but it's not uncommon in testing for a script to move or for a programmer to enter an incorrect URL. If you can report 404 errors gracefully, you're going to provide a lot more help to confused users and programmers. For example, if a script on the server was removed and you use the code in Listing 7, you'd see a non-descript error as shown in Figure 5.


Figure 5. Generic error handling
Generic error handling

The user has no way to tell if the problem is authentication, a missing script (which is the case here), user error, or even whether something in the code caused the problem. Some simple code additions can make this error a lot more specific. Take a look at Listing 8 which handles missing scripts as well as authentication errors with a specific message.


Listing 8. Check for a valid status code
   function updatePage() {
     if (request.readyState == 4) {
       if (request.status == 200) {
         var response = request.responseText.split("|");
         document.getElementById("order").value = response[0];
         document.getElementById("address").innerHTML =
           response[1].replace(/\n/g, "<br />");
       } else if (request.status == 404) {
         alert ("Requested URL is not found.");
       } else if (request.status == 403) {
         alert("Access denied.");
       } else
         alert("status is " + request.status);
     }
   }

This is still rather simple, but it does provide some additional information. Figure 6 shows the same error as in Figure 5, but this time the error-handling code gives a much better picture of what happened to the user or programmer.

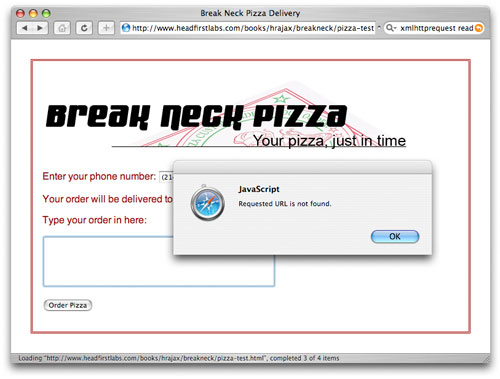

Figure 6. Specific error handling
Specific error handling
In your own applications, you might consider clearing the username and password when failure occurs because of authentication and adding an error message to the screen. Similar approaches can be taken to more gracefully handle missing scripts or other 400-type errors (such as 405 for an unacceptable request method like sending a HEAD request that is not allowed, or 407 in which proxy authentication is required). Whatever choices you make, though, it begins with handling the status code returned from the server.
