imagecolorallocatealpha

Allocate a color for an image (PHP 4 >= 4.3.2, PHP 5)
int imagecolorallocatealpha ( resource image, int red, int green, int blue, int alpha )

imagecolorallocatealpha() behaves identically to imagecolorallocate() with the addition of the transparency parameter alpha.

Parameters


An image resource, returned by one of the image creation functions, such as imagecreatetruecolor().

red

Value of red component

green

Value of green component

blue

Value of blue component

alpha

A value between 0 and 127. 0 indicates completely opaque while 127 indicates completely transparent.

The colors parameters are integers between 0 and 255 or hexadecimals between 0x00 and 0xFF.

Return Values

A color identifier or FALSE if the allocation failed.

ChangeLog

VersionDescription
Prior to 5.1.3 Returns -1 if the allocation failed.

Examples

Example 990. Example of using imagecolorallocatealpha()

<?php
$size
= 300;
$image=imagecreatetruecolor($size, $size);

// something to get a white background with black border
$back = imagecolorallocate($image, 255, 255, 255);
$border = imagecolorallocate($image, 0, 0, 0);
imagefilledrectangle($image, 0, 0, $size - 1, $size - 1, $back);
imagerectangle($image, 0, 0, $size - 1, $size - 1, $border);

$yellow_x = 100;
$yellow_y = 75;
$red_x    = 120;
$red_y    = 165;
$blue_x   = 187;
$blue_y   = 125;
$radius   = 150;

// allocate colors with alpha values
$yellow = imagecolorallocatealpha($image, 255, 255, 0, 75);
$red    = imagecolorallocatealpha($image, 255, 0, 0, 75);
$blue   = imagecolorallocatealpha($image, 0, 0, 255, 75);

// drawing 3 overlapped circle
imagefilledellipse($image, $yellow_x, $yellow_y, $radius, $radius, $yellow);
imagefilledellipse($image, $red_x, $red_y, $radius, $radius, $red);
imagefilledellipse($image, $blue_x, $blue_y, $radius, $radius, $blue);

// don't forget to output a correct header!
header('Content-type: image/png');

// and finally, output the result
imagepng($image);
imagedestroy($image);
?>

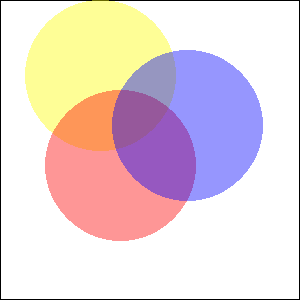

The above example will output something similar to:


Notes

Note:

This function requires GD 2.0.1 or later (2.0.28 or later is recommended).
