imagepolygon

Draws a polygon (PHP 4, PHP 5)
bool imagepolygon ( resource image, array points, int num_points, int color )

imagepolygon() creates a polygon in the given image.

Parameters


An image resource, returned by one of the image creation functions, such as imagecreatetruecolor().

points

An array containing the polygon's vertices, i.e. points[0] = x0, points[1] = y0, points[2] = x1, points[3] = y1, etc.

num_points

Total number of points (vertices)

color

A color identifier created with imagecolorallocate()

Return Values

Returns TRUE on success or FALSE on failure.

Examples

Example 1018. imagepolygon() example

<?php
// create a blank image
$image = imagecreatetruecolor(400, 300);

// fill the background color
$bg = imagecolorallocate($image, 0, 0, 0);

// choose a color for the polygon
$col_poly = imagecolorallocate($image, 255, 255, 255);

// draw the polygon
imagepolygon($image, array (

0,   0,

100, 200,

300, 200

),

3,

$col_poly);

// output the picture
header("Content-type: image/png");
imagepng($image);

?>

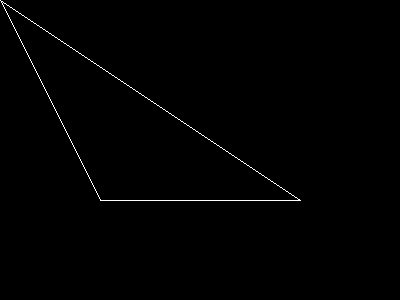

The above example will output something similar to:
